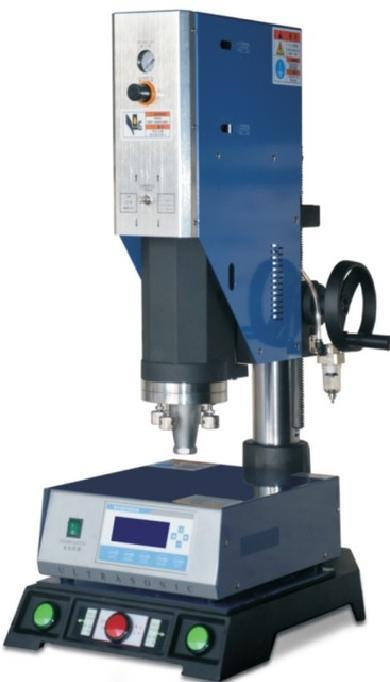

Standard welding machine: HS-1532 Features: Digital operating system, simple operation. It has overload protection function and stable performance. Horizontal four-point adjustment function, convenient mold calibration.
Technical parameters: working frequency 15KHZ, output power 3200W, color blue/red optional.
The optional language of frame column/square column is Chinese/English input voltage of single-phase AC220V V.
Frequency range ±0.5KHZ amplitude adjustment 1%-100% adjustable welding head stroke 75mm welding time 0.01-9.99s access air pressure 0.1 -0.7Mpa vibrating head cooling air-cooled workbench size 355 * 350 mm.
The size of the machine is 600*380*1000mm, and the weight of the machine is about 7 0 K G.
Application industries: toys, stationery, telecommunications, household appliances, nozzle separation (zinc alloy, plastic), etc.
