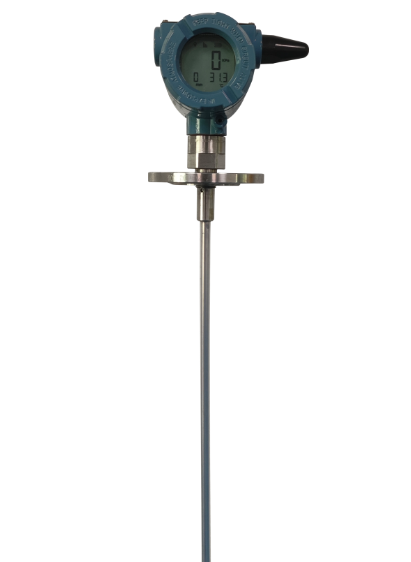

Multi-parameter IoT sensor (4-in-1 pressure temperature liquid level) Product Name: Multi parameter IoT Sensor (Four in One Pressure, Temperature, and Liquid Level)
Product model: XT-TLQ-04
Product specifications: L140mm * W140mm * H940mm
Product use: Mainly used to monitor the temperature, height, and pressure of the liquid inside the container. Through 4G IoT technology, key data is uploaded to the customer server, and customers can understand the pressure situation of the container on site on their computer or mobile terminal. Can be used for monitoring ton barrels, water tanks, oil tanks, sprinkler trucks, etc.
parameter
1. Power supply voltage: 3.6V (note: dry batteries are not rechargeable)
Power consumption: The average current is about<600uA, and the sleep current is about 80uA (note: the average current is related to the reporting frequency)
RF power consumption: maximum instantaneous transmission current 1A, average current<150mA
Specification size: L140mmW140mmH140mmH940mm
Positioning method: LBS base station positioning (note: base station positioning must be used in indoor environments)
Base station positioning error:<500 meters
Communication network: 4G communication
Communication method: MQTT or TCPIP
Antenna: 4G external antenna
Operating temperature: -20~70 ℃
Sampling time: 1 time/min (default)
Data upload frequency: configured by server or SMS (default upload once every 8 hours)
Configuration method: SMS, remote server
Pressure range: -80~700kPa (note: non crystalline medium)
Pressure accuracy: ± 0.5% FS
Pressure sensor material: stainless steel shell, pressure diaphragm 316L
Temperature range: -20~100 ℃ (note: medium does not crystallize)
Temperature accuracy: 0.5 ℃
Temperature sensor material: Imported digital temperature sensor
Liquid level range: customized
Liquid level accuracy: ± 5mm
Threaded interface: DN25 flange or R1/2
Protection level: IP67
Battery working time: 38000mAh, approximately 2 years (note: depends on specific usage environment)
