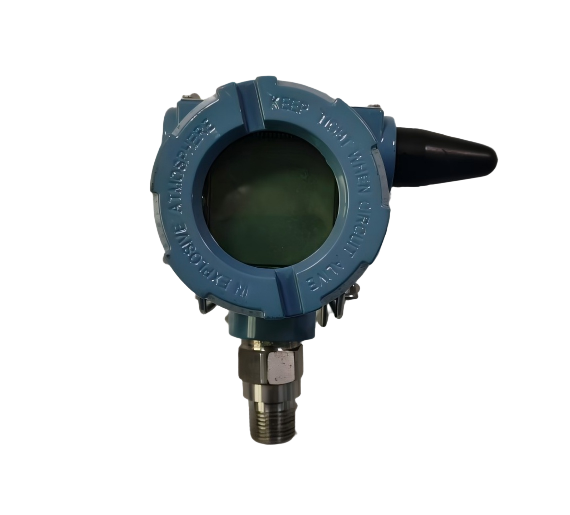

Smart meters (temperature, pressure, liquid level, GPS) Product Name: Multi-Parameter IoT Sensor (Dual-Pressure)

Product Model: XT-TLQ-02

Product Dimensions: L140mm × W140mm × H160mm

Product Application: Primarily used for monitoring the internal liquid body temperature and air pressure of containers. Key data is uploaded to the clients server via 4G IoT technology, enabling clients to monitor the pressure conditions of on-site containers through computer or mobile terminals. Suitable for monitoring ton barrels, water tanks, oil tanks, sprinkler trucks, etc.

Core Parameters:

1. Power Supply Voltage: 3.6V (non-rechargeable dry battery)

2. Power Consumption: Average current ≈ <600μA, standby current ≈ 80μA (average current depends on reporting frequency)

3. RF Power Consumption: Maximum instantaneous transmission current 1A, average current <150mA

4. Dimensions: L140mm × W140mm × H940mm

5. Positioning Method: LBS base station positioning (indoor environments require base station positioning)

6. Base Station Positioning Error: <500 meters

7. Communication Network: 4G

8. Communication Protocol: MQTT or TCP/IP

9. Antenna: 4G external antenna

10. Operating Temperature: -20°C to 70°C

11. Sampling Interval: 1 time/minute (configurable)

12. Data Upload Frequency: Configured by server or SMS (default: once every 8 hours)

13. Configuration Method: SMS or remote server

14. Pressure Range: 0–100 psi (700 kPa), non-crystallizing medium

15. Pressure Accuracy: ±0.
