Description:

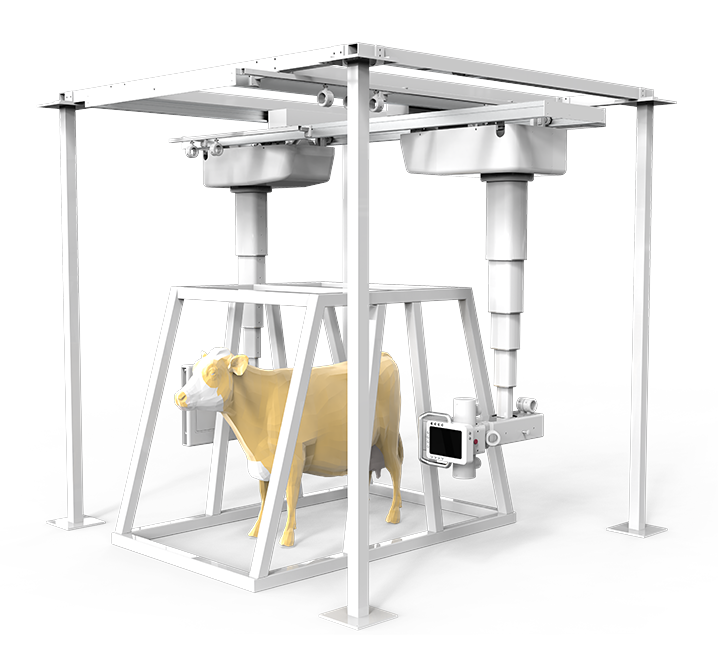

9.1 Double Suspended Pet DR

Mechanical Parameters

1. Pet DR

X-ray tube assembly lifting distance from the ground: minimum height of 1400 mm ±2% and 400 mm ±20 mm.

Source-to-image distance (SID): 1820 mm ±3%.

Lateral movement range of the suspension system: 1150 mm ±2%.

Longitudinal movement range of the suspension system: 2650 mm ±2%.

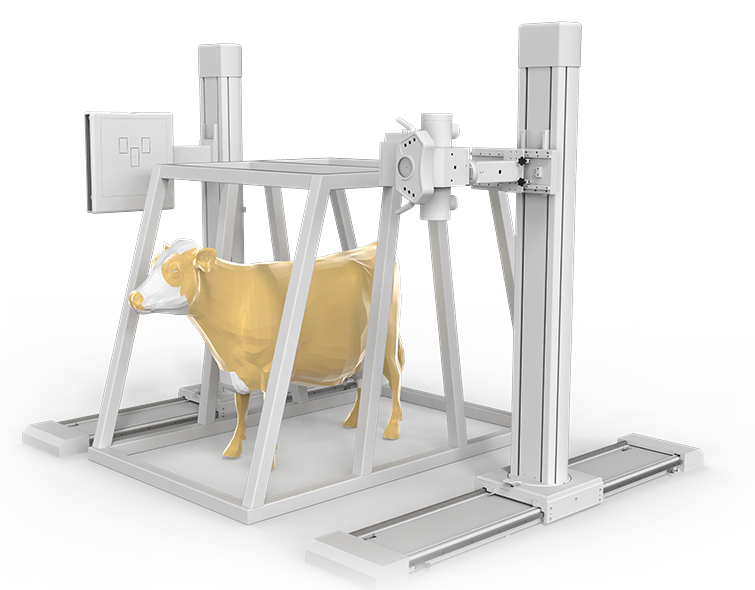

9.2 Double-Track Pet DR

Mechanical Parameters

1. Pet DR

Source-to-image distance (SID): 2000 mm ±3%.

Lateral movement range of the X-ray tube: 350 mm ±2%.

Vertical movement range of the column: 1450 mm ±2%.

Vertical movement range of the column: 1100 mm ±2%.

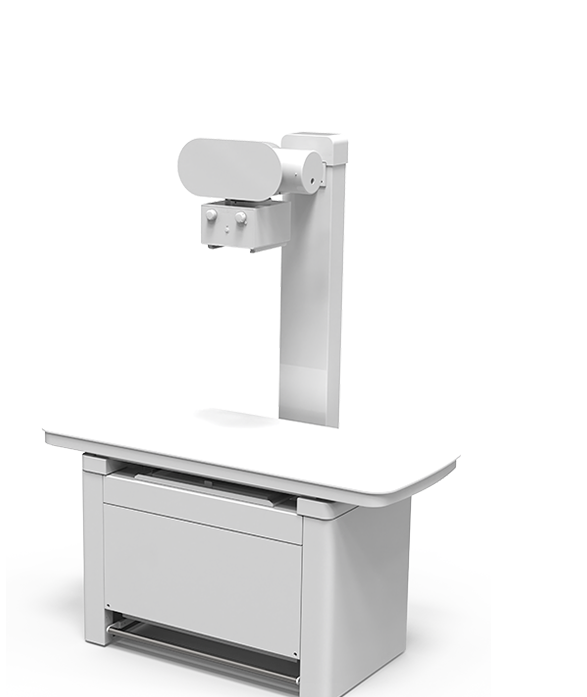

9.3 Pet DR

Mechanical Parameters

1. Pet DR (Full Manual Mode)

Bed panel dimensions (length × width): 1400 × 720 mm.

Distance from the bed surface to the ground: 700 mm ±3%.

Longitudinal movement range of the floating bed surface: 310 mm ±3% (pedal-controlled).

Lateral movement range of the floating bed surface: 50 mm ±3% (pedal-controlled).

SID adjustment range: 600–1200 mm ±3%.

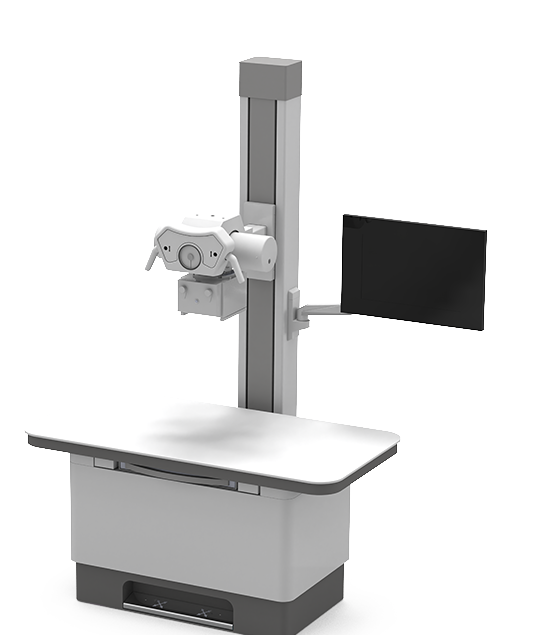

9.4 Pet DR

Mechanical Parameters

1. Pet DR (Full Manual Mode)

Bed panel dimensions (length × width): 1400 × 720 mm.

Distance from the bed surface to the ground: 700 mm ±3%.

X-ray tube rotation angle: 180°, with permanent-magnet positioning at 90° intervals.

SID adjustment range: 450–1100 mm ±3%.

Left and right movement range of the column: 590 mm ±3%.

Flat-panel tray movement range: 300 mm ±3%.

Side plate lifting range: 200 mm ±3%.

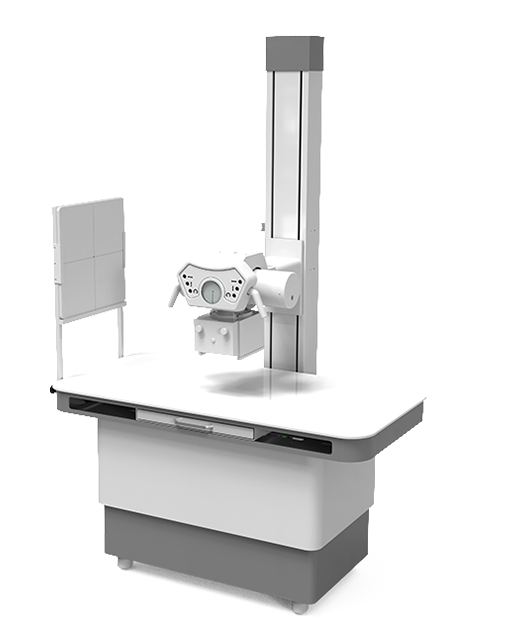

9.5 Pet DR

Mechanical Parameters

1. Pet DR (Full Manual Mode)

Bed panel dimensions (length × width): 1400 × 600 mm.

Distance from the bed surface to the ground: 760 mm ±3%.

Source-to-image distance (SID): 1000 mm ±3%.

Longitudinal movement range of the floating bed surface: 300 mm ±3% (pedal-controlled).

Lateral movement range of the floating bed surface: 140 mm ±3% (pedal-controlled).
