• Electric double-column digital X-ray machine

Electric Double-column Digital X-ray Machine

  • 747
Product Review | Top Rated

    Additional Information

  • Color: Default Color
  • Size: Default Size
  • Origin: China
  • Usage: Default Usage
  • Type: Default Type
  • Efficiency: 99.9% Type

Description:

1. Product Overview

The Electric Double-Column Digital X-Ray Machine is a multifunctional radiographic imaging system designed for hospital radiology departments. It combines a flexible mechanical structure with advanced digital imaging technology to support efficient examinations and high-quality diagnostic image acquisition.

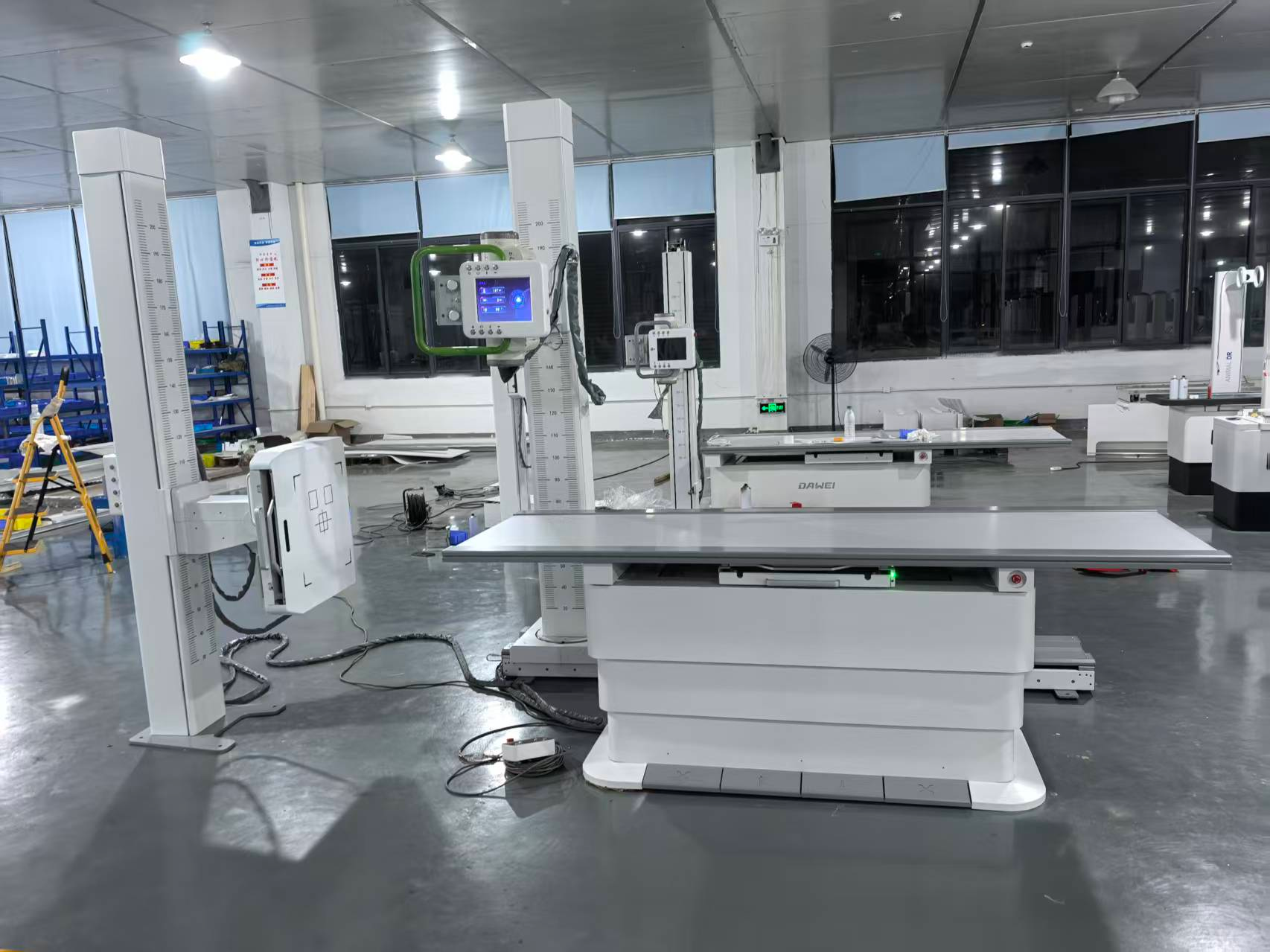

The system consists of a tube column, a detector column, and an electric examination table. The independent movement of the tube and detector columns allows flexible positioning for different projections, reducing the need for patients to change positions frequently.

An integrated flat-panel detector on the examination table supports examinations in both standing and lying positions. The system is suitable for routine X-ray examinations of the chest, abdomen, spine, and limbs.

2. Tube Column Specifications

The tube column supports flexible positioning and manual adjustment for different examination requirements.

Lateral movement range: 1760 mm ±3%

Longitudinal movement range: 1500 mm ±3%

Minimum distance from the tube center to the floor: 470 mm ±3%

Tube rotation angle: 180°, with manual positioning at 90° intervals using permanent-magnet positioning

Vertical tilt angle of the tube: +20° to −90° ±2°, manually adjusted

3. BUCKY Column Specifications

The BUCKY column provides adjustable positioning to accommodate different radiographic projections.

Vertical travel range: 1550 mm ±3%

Minimum distance from the BUCKY center to the floor: 470 mm ±3%

BUCKY rotation angle: +90° to −20°, electrically adjusted

4. Electric Examination Table Specifications

The electric examination table features a floating tabletop to facilitate patient positioning and alignment.

Maximum tabletop dimensions: 2300 × 800 × 10 mm

Longitudinal floating tabletop movement: 790 mm ±3%, pedal-controlled

Lateral floating tabletop movement: 210 mm ±3%, pedal-controlled

Minimum distance from the tabletop to the floor: 524 mm ±3%

Floating tabletop movement range: 270 mm

Flat-panel tray movement range: 650 mm ±3%

5. Product Features

Independent tube and detector column movement supports flexible alignment for different projection positions.

Standing and lying examination modes accommodate a wide range of routine radiographic procedures.

The horizontally and vertically movable floating tabletop helps technicians position patients more conveniently.

Automatic tracking, automatic positioning, and stored positioning parameters for common examinations help simplify workflows and improve operational efficiency.

6. Applications

Suitable for general radiography in hospital radiology departments, including chest, abdominal, spinal, and limb examinations. Actual clinical applications depend on the system configuration and applicable regulatory approvals.
