1. Product Overview

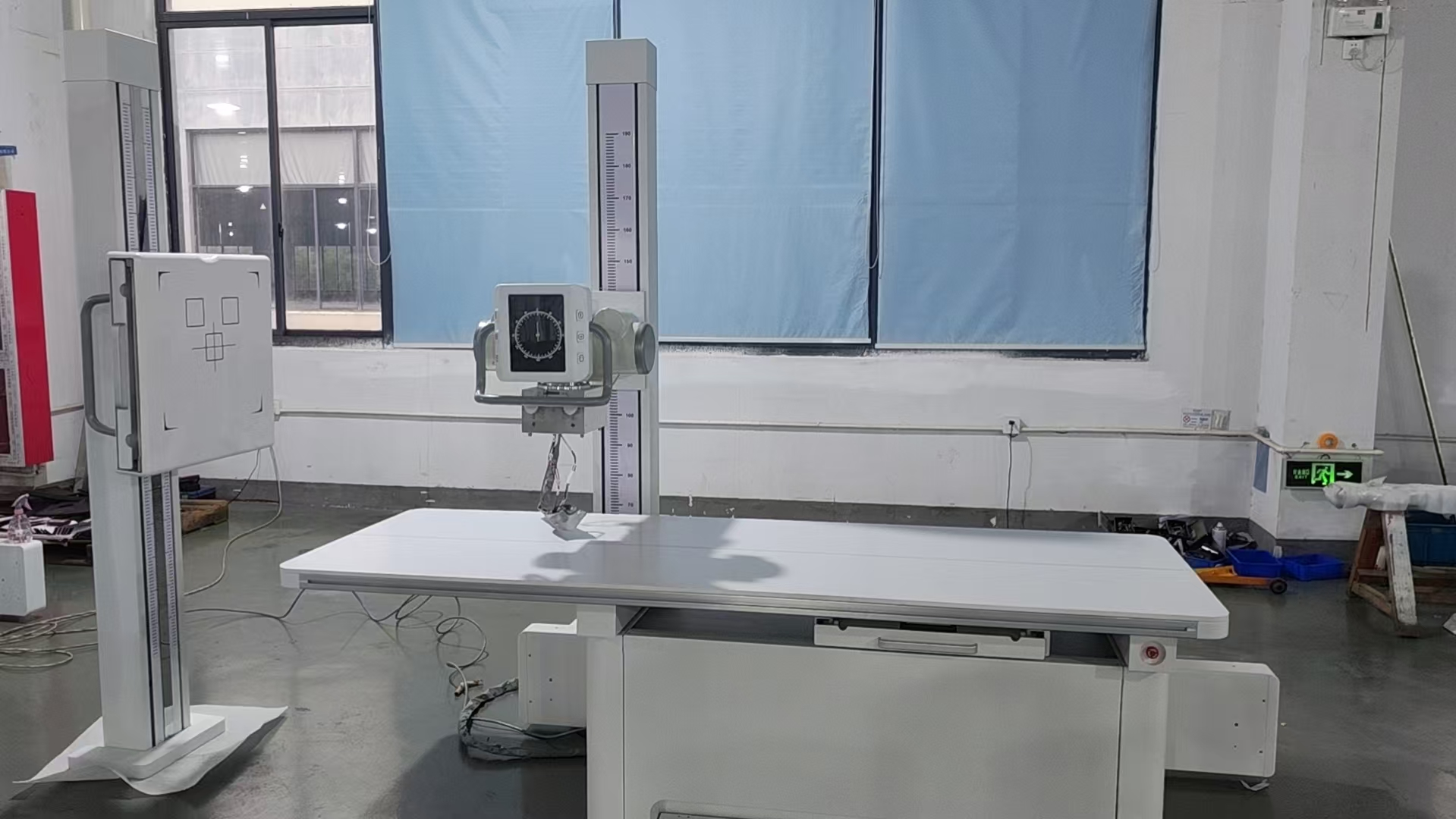

The Manual Double-Column Digital X-Ray Machine is a digital radiography system designed for routine diagnostic imaging in hospital radiology departments. Its dual-column configuration allows the X-ray tube and BUCKY detector stand to be positioned independently, supporting flexible alignment for different radiographic examinations.
The system features manually adjustable tube positioning, a height-adjustable BUCKY column, and a fixed examination table with a floating tabletop. These features help technicians position patients and equipment for a range of routine X-ray procedures.
2. Tube Column Specifications
The tube column supports manual adjustment to accommodate different imaging positions.
Lateral movement range of the tube column: 1900 mm ±3%
Longitudinal movement range of the tube: 1500 mm ±3%
Minimum distance from the tube center to the floor: 470 mm ±3%
Tube rotation angle: 180°, with permanent-magnet positioning at 90° intervals; manually adjusted
3. BUCKY Column Specifications
The BUCKY column provides vertical adjustment to support different radiographic projections.
Vertical travel range: 1550 mm ±3%
Minimum distance from the BUCKY center to the floor: 470 mm ±3%
4. Fixed Examination Table Specifications
The manual examination table features a floating tabletop to facilitate patient positioning.
Maximum tabletop dimensions: 2300 × 800 × 10 mm
Longitudinal floating tabletop movement: 740 mm ±3%, pedal-controlled
Lateral floating tabletop movement: 210 mm ±3%, pedal-controlled
Minimum distance from the tabletop to the floor: 700 mm ±3%
Flat-panel detector tray movement range: 650 mm ±3%
5. Product Features
Independent tube and BUCKY column positioning supports flexible alignment for different radiographic views.
Manual controls allow technicians to adjust the tube and detector positions according to examination requirements.
The floating tabletop supports longitudinal and lateral patient positioning for improved alignment during imaging.
The system is designed to support routine digital radiography workflows in clinical settings.
6. Product Applications
Suitable for routine X-ray examinations in hospital radiology departments, including imaging of the chest, abdomen, spine, and limbs, depending on the system configuration and clinical requirements.
