1. Product Overview

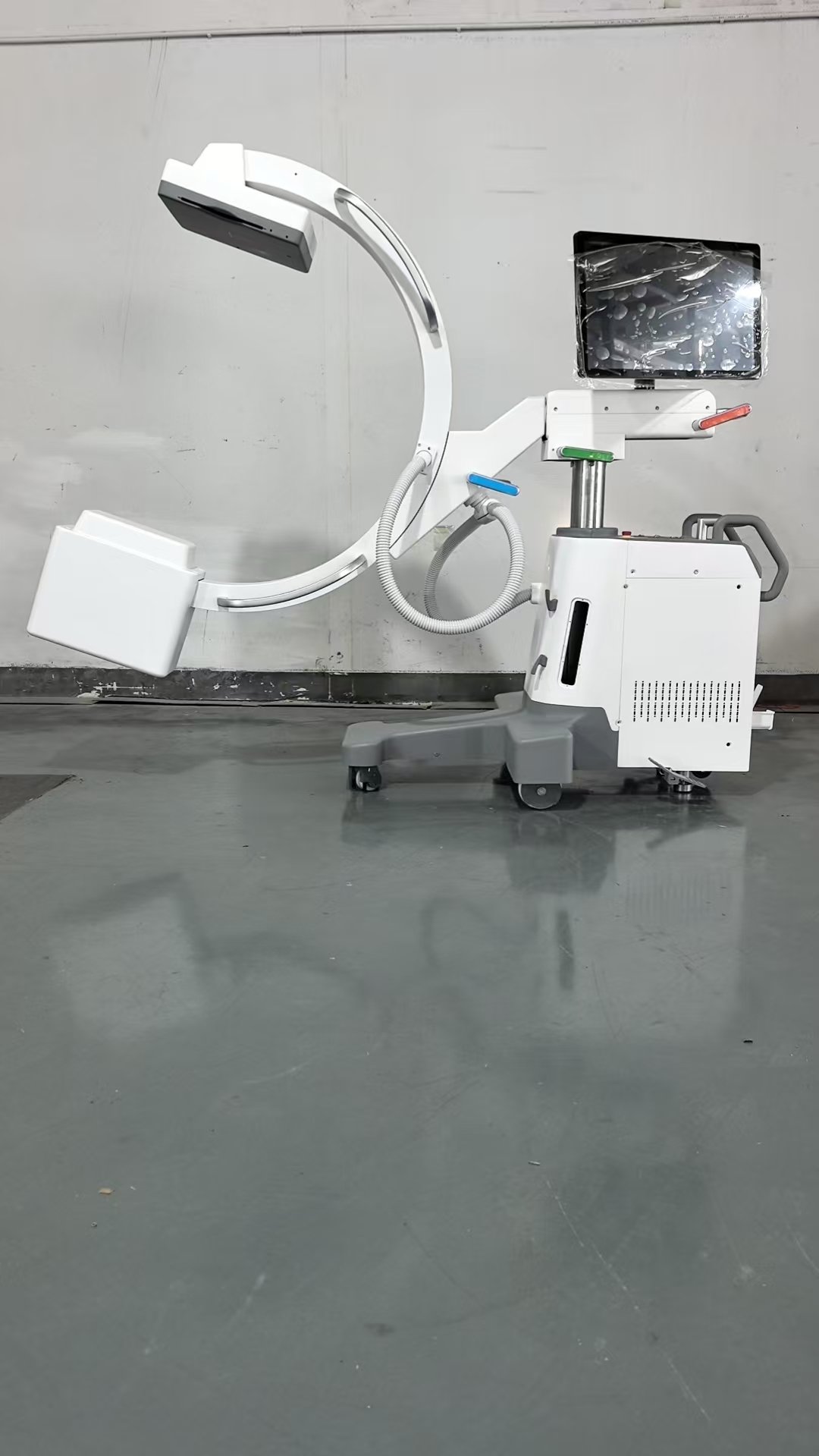

The Mobile C-Arm X-Ray Machine is a mobile medical imaging system designed to provide real-time X-ray imaging during surgical and interventional procedures. Its open C-arm structure allows the imaging unit to be positioned around the patient's surgical site, enabling image acquisition from multiple angles.
The system integrates a C-arm frame, high-voltage generator, X-ray tube, and digital imaging system. Its adjustable movements help clinicians obtain images for procedural guidance while allowing access to the patient during treatment.
2. C-Arm Movement Specifications
The C-arm structure supports multiple movements to accommodate different imaging positions.
Sliding movement along the C-arm arc: angular range of at least 110° to 0°
Rotation around the horizontal axis: angular range of at least 190°
Horizontal swing around the vertical axis: angular range of at least 15°
Longitudinal and horizontal movement range: at least 200 mm
Vertical movement range: at least 400 mm
3. C-Arm Frame and Mobility
The mobile frame supports positioning around the patient and allows the equipment to be moved within the clinical environment.
Rear caster steering range: 90°
4. Product Features
The open C-arm design provides access to the surgical site while supporting imaging from different directions.
Multiple movement options help clinicians adjust the imaging angle and position according to procedural requirements.
The integrated X-ray and digital imaging components support real-time image acquisition for clinical guidance.
The mobile configuration allows the system to be positioned in different procedure rooms, subject to the facility's requirements.
5. Product Applications
Common applications include orthopedic procedures, cardiovascular interventions, emergency care, and other clinical procedures requiring real-time X-ray imaging. Actual applications depend on the system configuration and applicable regulatory approvals.
