Suspended Digital X-ray Photography System (suspended DR)

  • 737
Product Review | Top Rated

    Additional Information

  • Color: Default Color
  • Size: Default Size
  • Origin: China
  • Usage: Default Usage
  • Type: Default Type
  • Efficiency: 99.9% Type

Description:

1. Product Overview

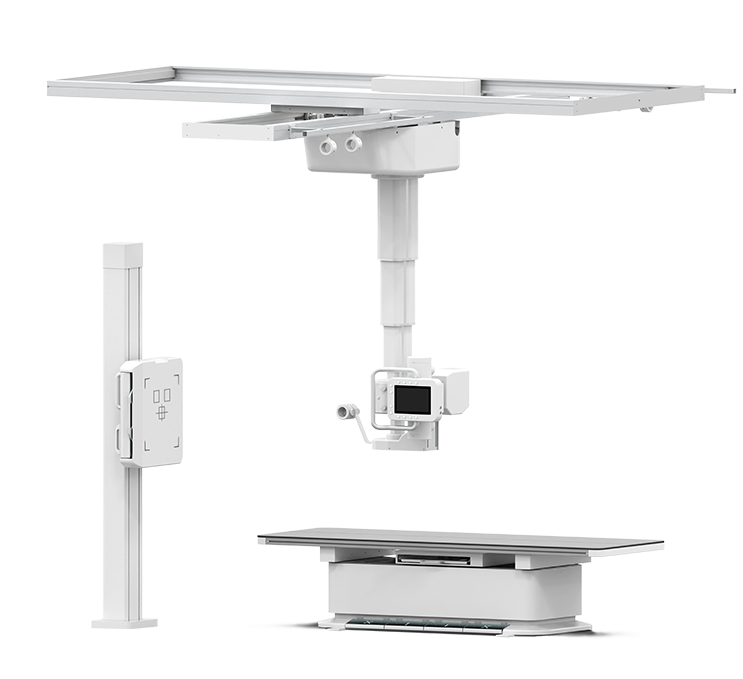

The Suspended Digital X-Ray Photography System (Suspended DR) is a fixed digital radiography system that uses ceiling-mounted rails to support and position the X-ray tube. Combined with a digital detector, it provides flexible positioning and efficient image acquisition for a wide range of radiographic examinations.

The suspended frame supports flexible positioning, while the telescopic arm and balance system facilitate projection at various angles, including lateral, oblique, and horizontal views. The system is suitable for examinations of the head, neck, chest, abdomen, and limbs, as well as imaging patients in wheelchairs or on mobile beds.

With the equipment and cables mounted overhead, the system keeps the floor area clear, helping medical staff move equipment, assist patients, and perform routine cleaning and disinfection.

2. Suspension System Specifications

The ceiling-mounted suspension system supports flexible positioning of the X-ray tube for different examination requirements.

Vertical movement range of the tube support: 1800 mm ±3%

Longitudinal movement range of the tube support: 3200 mm ±3%

Horizontal movement range of the tube support: 2000 mm ±3%

Tube rotation around the vertical axis: 180° ±2°, manually adjusted

Tube rotation around the horizontal axis: 135° ±2°

3. BUCKY Column Specifications

The BUCKY column provides adjustable vertical positioning to support different radiographic projections.

Vertical movement range: 1400 mm ±3%

4. Examination Table Specifications

The examination table features a floating tabletop to help technicians position patients accurately and efficiently.

Maximum tabletop dimensions: 2400 × 800 × 10 mm

Longitudinal floating tabletop movement: 1000 mm ±3%, pedal-controlled

Lateral floating tabletop movement: 260 mm ±3%, pedal-controlled

Minimum distance from the tabletop to the floor: 500 mm ±3%

Floating tabletop movement range: 400 mm

Flat-panel detector tray movement range: 650 mm ±3%

5. Product Features

Ceiling-mounted rails and a telescopic arm provide a wide range of movement for flexible tube positioning.

The suspension and balance systems facilitate imaging at different angles and positions.

The overhead configuration helps keep the floor clear, improving room accessibility and supporting easier cleaning and disinfection.

The system accommodates a variety of patient positions, including standing, wheelchair, and mobile-bed examinations, subject to system configuration.

6. Product Applications

Suitable for general radiographic examinations of the head, neck, chest, abdomen, and limbs, as well as selected lateral, oblique, horizontal, wheelchair, and mobile-bed projections.
