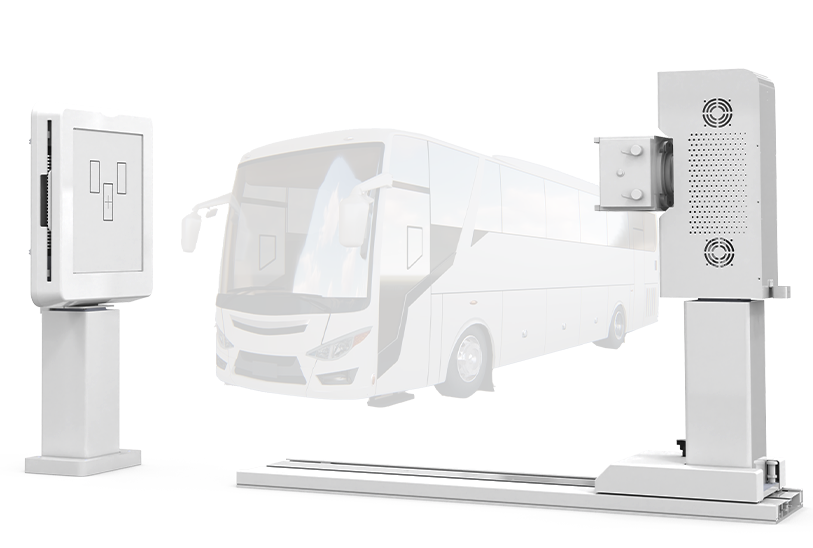

Dynamic On-Board DR
Mechanical Parameters
1. Tube Column (Electric Mode)
Minimum distance from the tube center to the ground: 1000 mm.
Maximum distance from the tube center to the ground: 1450 mm ±3%.
Ground rail block travel distance: 1000 mm ±3% (manual).
2. BUCKY Column (Electric Mode)
BUCKY center height range from the ground: 1000–1450 mm ±3%.
BUCKY and grid: Pull-out type.

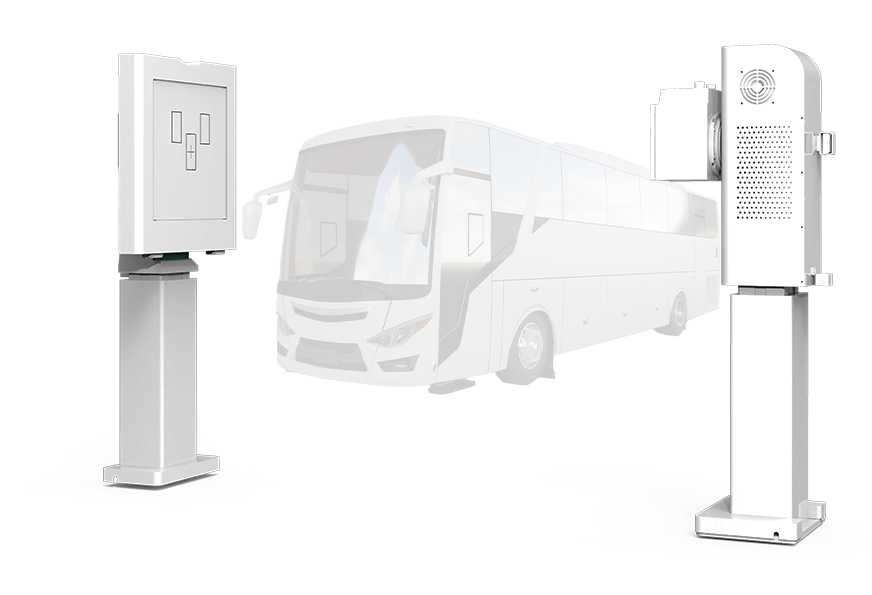

Static On-Board DR
Mechanical Parameters
1. Tube Column (Electric Mode)
Minimum distance from the tube center to the ground: 1000 mm.
Maximum distance from the tube center to the ground: 1450 mm ±3%.
2. BUCKY Column (Electric Mode)
Minimum distance from the BUCKY center to the ground: 1000 mm.
Maximum distance from the BUCKY center to the ground: 1450 mm ±3%.
